Day2 身份证信息识别

2020-06-06

身份识别web应用

阿里云ai训练营，继续来记一波笔记，今天主要学的是调用阿里的ocr接口来实现一个简单的身份证文字信息识别。附上阿里的demo地址https://github.com/aliyun/alibabacloud-viapi-demo。阿里视觉开放平台地址：https://vision.aliyun.com/。

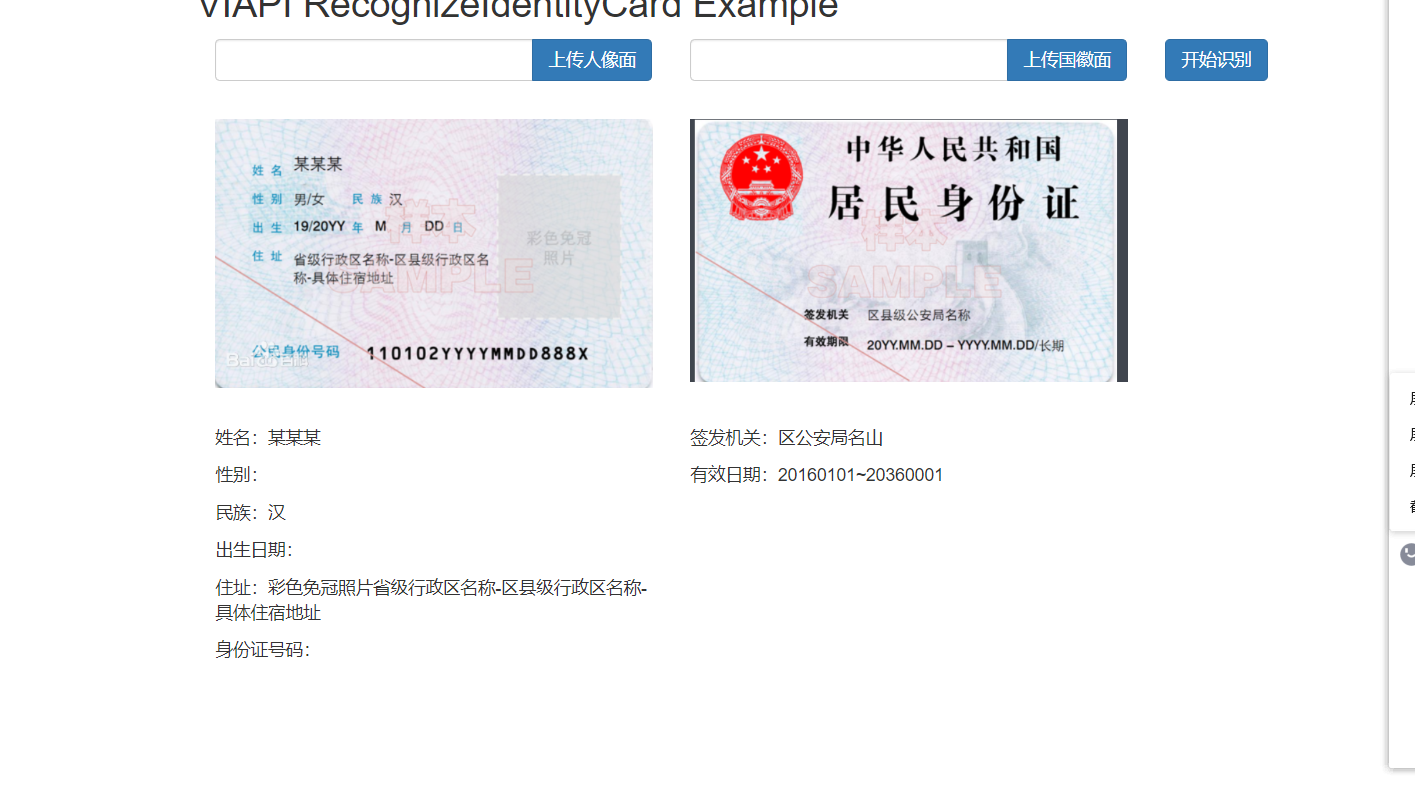

下边为识别结果图，（文字显示不全是因为选的身份证图片问题，）
识别结果图
下边是需要的pom依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>ocr</artifactId>
            <version>1.0.3</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-core</artifactId>
            <version>4.4.6</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.68</version>
        </dependency>

demo的前端界面用thymeleaf渲染的，用了bootstrap的部分样式。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <title>VIAPI</title>
    <link rel="stylesheet" href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css">
    <script src="https://apps.bdimg.com/libs/jquery/2.1.4/jquery.min.js"></script>
</head>
<body>
    <div class="container">
        <div class="row">
            <div class="col-md-12 mx-auto">
                <h2>VIAPI RecognizeIdentityCard Example</h2>
                <div class="col-sm-12">
                    <p th:text="${message}" th:if="${message ne null}" class="alert alert-primary"></p>
                </div>
                <form method="post" th:action="@{/upload}" enctype="multipart/form-data">
                    <div class="col-sm-4">
                        <div class="input-group">
                            <input id='location' class="form-control" onclick="$('#i-face').click();">
                            <label class="input-group-btn">
                                <input type="button" id="i-check" value="上传人像面" class="btn btn-primary" onclick="$('#i-face').click();">
                            </label>
                        </div>
                    </div>
                    <input type="file" name="face" id='i-face'  accept=".jpg, .png, .jpeg" onchange="$('#location').val($('#i-face').val());" style="display: none">
                    <div class="col-sm-4">
                        <div class="input-group">
                            <input id='location1' class="form-control" onclick="$('#i-back').click();">
                            <label class="input-group-btn">
                                <input type="button" id="i-check-1" value="上传国徽面" class="btn btn-primary" onclick="$('#i-back').click();">
                            </label>
                        </div>
                    </div>
                    <input type="file" name="back" id='i-back'  accept=".jpg, .png, .jpeg" onchange="$('#location1').val($('#i-back').val());" style="display: none">
                    <div class="col-sm-4">
                        <button type="submit" class="btn btn-primary">开始识别</button>
                    </div>
                </form>

            </div>
        </div>

        <div class="row" style="margin-top: 30px;">
            <div class="col-md-12 mx-auto">
                <div class="col-sm-4">
                    <img style="width: 100%;" th:src="${faceImage}" th:if="${faceImage ne null}" class="img-fluid" alt=""/>
                </div>
                <div class="col-sm-4">
                    <img style="width: 100%;" th:src="${backImage}" th:if="${backImage ne null}" class="img-fluid" alt=""/>
                </div>
            </div>
        </div>
        <div class="row" style="margin-top: 30px;">
            <div class="col-md-12 mx-auto">
                <div class="col-sm-4">
                    <p th:if="${faceResult ne null}"><span>姓名：</span><span th:text="${faceResult.name}"></span></p>
                    <p th:if="${faceResult ne null}"><span>性别：</span><span th:text="${faceResult.gender}"></span></p>
                    <p th:if="${faceResult ne null}"><span>民族：</span><span th:text="${faceResult.nationality}"></span></p>
                    <p th:if="${faceResult ne null}"><span>出生日期：</span><span th:text="${faceResult.birthDate}"></span></p>
                    <p th:if="${faceResult ne null}"><span>住址：</span><span th:text="${faceResult.address}"></span></p>
                    <p th:if="${faceResult ne null}"><span>身份证号码：</span><span th:text="${faceResult.IDNumber}"></span></p>
                </div>
                <div class="col-sm-4">
                    <p th:if="${backResult ne null}"><span>签发机关：</span><span th:text="${backResult.issue}"></span></p>
                    <p th:if="${backResult ne null}"><span>有效日期：</span><span th:text="${backResult.startDate}"></span>~<span th:text="${backResult.endDate}"></span></p>
                </div>
            </div>
        </div>
    </div>
</body>
</html>

后端主要用到的技术栈是springboot和阿里ocr，没用的数据库，上传的图片是存到缓存里边的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@RequestMapping()
   public String index(Model model) {
   //检查缓存的身份证正反面图片数量是否一样，不一样，则清空缓存
       if (faceImages.size() != backImages.size()) {
           faceImages.clear();
           backImages.clear();
           faceResults.clear();
           backResults.clear();
       }
       //刷新页面之前上传的图片不会丢失
       if (!CollectionUtils.isEmpty(faceImages) && faceImages.size() == backImages.size()) {
           model.addAttribute("faceImage", faceImages.get(faceImages.size() - 1));
           model.addAttribute("faceResult", faceResults.get(faceResults.size() - 1));
           model.addAttribute("backImage", backImages.get(backImages.size() - 1));
           model.addAttribute("backResult", backResults.get(backResults.size() - 1));
       }
       return "index";
   }

以下是上传文件的控制方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
@PostMapping("/upload")
   public String uploadFile(@RequestParam("face") MultipartFile face, @RequestParam("back") MultipartFile back, RedirectAttributes attributes) {
       if (face.isEmpty() || back.isEmpty()) {
           attributes.addFlashAttribute("message", "Please select a file to upload.");
           return "redirect:/";
       }

       String errorMessage = null;
       try {
       //文件上传的目录是否为空，空则递归创建
           Path dir = Paths.get(uploadDirectory);
           if (!Files.exists(dir)) {
               Files.createDirectories(dir);
           }

           if (!face.isEmpty()) {
         //如果图像不为空则调用apache.commons的StringUtils保存到本地
               String filename = saveFile(face);
               Map<String, String> res = ocrService.RecognizeIdCard(uploadDirectory + filename, "face");
               faceImages.add("/images/" + filename);
               faceResults.add(res);
           }
           if (!back.isEmpty()) {
               String filename = saveFile(back);
               Map<String, String> res =
               ocrService.RecognizeIdCard(uploadDirectory + filename, "back");	//调阿里ocr的接口
               backImages.add("/images/" + filename);
               backResults.add(res);
           }
       } catch (TeaException e) {
           e.printStackTrace();
           errorMessage = JSON.toJSONString(e.getData());
       } catch (Exception e) {
           e.printStackTrace();
           errorMessage = e.getMessage();
       }

       if (StringUtils.isNotBlank(errorMessage)) {
       //存储错误信息
           attributes.addFlashAttribute("message", errorMessage);
       }
       return "redirect:/";
   }

      private String saveFile(MultipartFile file) throws Exception {
       String suffix = StringUtils.substringAfterLast(file.getOriginalFilename(), ".");
       String filename = UUID.randomUUID().toString() + "." + suffix;
       Path path = Paths.get(uploadDirectory + filename);
       Files.copy(file.getInputStream(), path, StandardCopyOption.REPLACE_EXISTING);
       return filename;
   }

Author: Sakura
